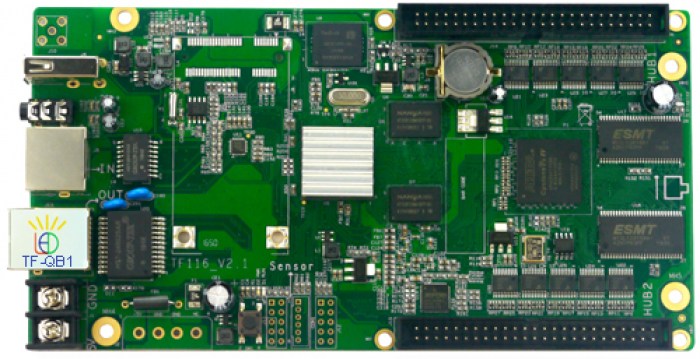

TF-QB1 RGB VIDEO LAN+USB
Control card |
TF-QB1 |
Function |
Arbitrary partition, Multi partition arbitrary super position, Program background animation, Streamer word, Text strokes, Smart scan, support cross screen, video(video no need transcoding),audio, picture. |
Interface |
100M Ethernet+ Gigabit Ethernet + U-disk |
Cascade mode |
support cascade connected with receiving card, to improve refresh rate( receiving card TF-RB01/TF-RB02) |
Pixel range |
Full color 512x192 1024x96 (Height max:512;Width max:1024) |
LAN port Communication |
Control card default IP:192.168.1.252, support network automatically search10M/100M/1000Madaptive, support U-disk updated program. |
U-disk function |
Support U-disk updating program, adjusting brightness, modify the parameters, support the programs(which is stored in U-disk) playing directly. |
Hub board |
2 x 50 Pin(height max support 10 pcs HUB75) |
Scan type |
support 1-32 scan type, support “smart scan”. |
Memory |
4GB(Support U-disk memory expansion) |
Program QTY |
Maximum support 200 programs, support 16 partitions play at the same time, Partitions can overlap, each widow support 200 texts |
Effect |
45 kinds of different actions. |
Colorful border |
support a lot Colorful borders, support picture user-defined borders. |
Content type |
Video, audio, Text, flash, picture,a nimation, timing, count down, count up, clock, Temperature, humidity, weather. |
Play type |
program support playing by turns, by timing, by date, by week, by time quantum. |
Time display |
Clock, time , time with seconds , support adjusting font size, can set time zone, support many different time zones play at the same time. |
Communication |
lan port communication, support U disk update program. |
Brightness adjust |
16 levels brightness. support Manual adjustment of brightness, support 6 period timing adjust brightness, Auto adjust brightness. |
Screen switch |
manual screen switch, support 4 period timing screen switch. |
Test Key |
test key on board, can Switch test mode. |
Electrical parameters |
+5V DC(4.5V~5.5V) |
Working temperature |
-30℃~70℃ |
